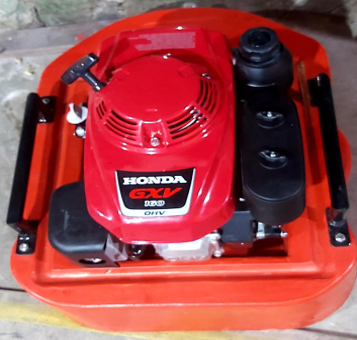

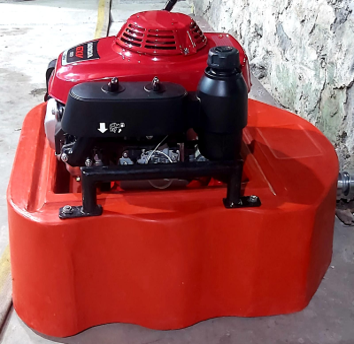

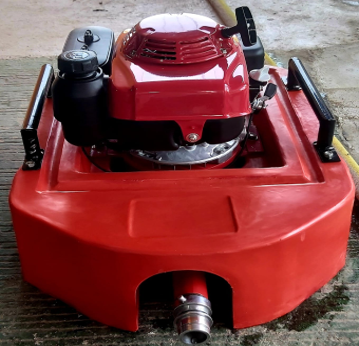

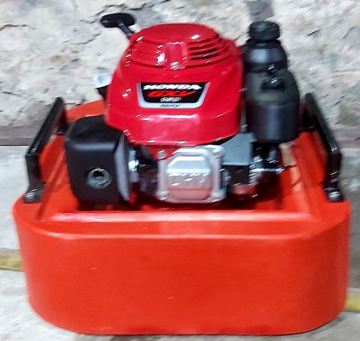

| PUMP |
| DMI Fire Fighting Centrifugal Pump ( Single stage ) |
| made of gunmetal/red brass with pump shaft made of stainless steel |
| Mechanical seal |
| 1 x suction inlet ( 2,5 " ) suction sleve |
| 1 x pressure outlet ( 2,5" ) with pressure valve |
| Coupling system storz ( Other on request ) |
| Pump casing and Impeller made of Alumunium Alloy |
| EQUIPMENT |
| Frame/ body of Fiberglass with 2 handle that can be rotated |
| Pump pressure gauge 125 bar hour meter |
| PERFORMANCE |
| Nominal performance 480 I/min at 3 bar |
| Max delivery rate 500 I/min |
| Max closing pressure 4 bar |
| DRIVE |
| Combustion engine HONDA GXV 160 OHV |
| Single cylinder, 4 stroke gasoline fuel |
| Manual stater, air cooling, tank capacity 1,8 Liter |
| Weight |
| 26 Kg ( ready for operation ), 20 Kg ( dry ) |
| Dimension L x W x H ( 756 x 630 x 430 mm ) |
