| PUMP | ||||||

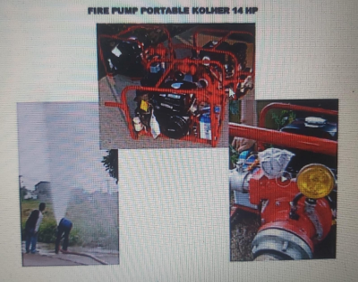

| DMI Fire Fighting Centrifugal Pump ( Single stage ) | ||||||
| made of gunmetal/red brass with pump shaft made of stainless steel mechanical seal | ||||||
| 1 x suction inlet ( 2,5 " ) suction sleve | ||||||
| 1 x pressure outlet ( 2,5" ) with pressure valve | ||||||
| Coupling system storz ( Other on request ) | ||||||
| Pump casing and Impeller made of Alumunium Alloy | ||||||
| Equipment | ||||||
| Iron carry frame with 4 rotatable handle ( rubber coated ) | ||||||
| pump pressure gauge 125 bar hour meter | ||||||
| drain cock, plug box for external charger | ||||||
| Option : Spotlight | ||||||
| Nominal performance 660 I/min at 5 bar | ||||||
| Max Delivery rate 1080 I/min | ||||||
| Closing Pressure 9 bar | ||||||
| Drive combustion engine KOHLER CH 440 1 cylinder, | ||||||
| 4 Stroke diesel engine, manual and electrical starter | ||||||
| starter batteray, air cooling with tank capacity 5 liter | ||||||
| Weight 75 KG ( Ready for operation ), 66,7 Kg ( Dry ) | ||||||
Dimension L x W x H ( 650 x 610 x 650 mm )
|
